1924463-1 | AMP

Name: Pin contact, 0.52-0.82 mm², AWG 20-18, crimp connection, gold-plated, 1924463-1
Brand: AMP
SKU: 36P3938
Price: 0.43 EUR
Availability: InStock

Pin contact, 0.52-0.82 mm², AWG 20-18, crimp connection, gold-plated, 1924463-1

Order No.: 36P3938

EAN: 4099889646931

MPN:

1924463-1

Series: AMPSEAL

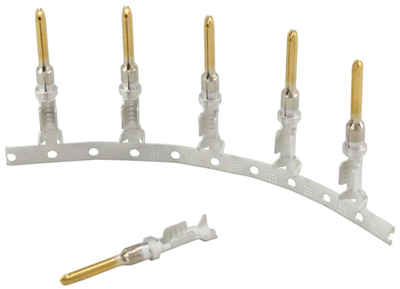

Image may differ

Key Specification:

Ausführung Stiftkontakt

Leiterquerschnitt 0,52-0,82 mm²

AWG-Leiterquerschnitt AWG 20-18

Kontaktanschluss Crimpanschluss

Kontaktmaterial Kupferlegierung

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.4284 € *

Available: 48 pcs.

Available in 5 Days: 4,000 pcs.

Leadtime: 6 Weeks **

Total Price:

0.43 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contacts for motor vehicles, 1924463-1, TE Connectivity

Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Pin, Mating Pin Diameter: 1.59 mm, Automotive terminal Interface Plating: Gold (Au), Contact Termination Area Plating Material: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 20 - 18 AWG, Wire Size: 0.51 - 0.82 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², Wire Size Search: 18 AWG, 19 AWG, 20 AWG, Wire Insulation Diameter: 1.27 - 2.71 mm, 120 °C, Operating Temperature Range: -40 - 120 °C.

Technical specifications

	Ausführung	Stiftkontakt
	AWG-Leiterquerschnitt	AWG 20-18
	Isolationsdurchmesser	1,27-2,71 mm
	Kontaktanschluss	Crimpanschluss
	Kontaktmaterial	Kupferlegierung
	Kontaktoberfläche Anschlussbereich	verzinnt
	Kontaktoberfläche	vergoldet
	Leiterquerschnitt	0,52-0,82 mm²
