205202-7 | AMP

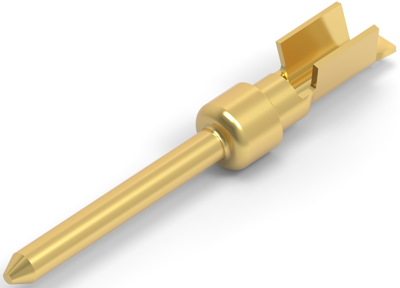

Pin contact, 0.2-0.6 mm², AWG 24-20, crimp connection, gold-plated, 205202-7
Unit Price (€ / pc.)
0.8687 € *
Available: 0 pcs.
Available in 5 Days: 330 pcs.
Leadtime: 11 Weeks **
Total Price:
0.87 € *
Price list
Quantity
Price per unit*
150 pcs.
0.8687 €
600 pcs.
0.7378 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin contact, 205202-7, TE Connectivity
Grade: Standard, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, Color Code: Red, PCB Contact Termination Area Plating Material: Gold Flash, Contact Type: Pin, D-Sub Contact Size: 20, Contact Base Material: Brass, Contact Mating Area Plating Material: Gold Flash, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: Without, Insulation Diameter (Max): , Wire Size: 24 - 20 AWG, Wire Size: 0.2 -0.6 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 0.068 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | gold-plated | |
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated | |
| Cable cross-section | 0.2-0.6 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
