207437-3 | AMP

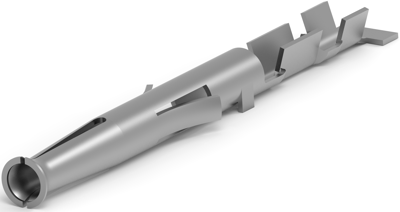

Receptacle, 0.08-0.34 mm², AWG 28-22, crimp connection, 207437-3
Order No.: 36P6360
EAN: 4099889647181
MPN:
207437-3
Unit Price (€ / pc.)
0.4760 € *
Available: 0 pcs.
Leadtime: On Request **
Connector contact, 207437-3, TE Connectivity
Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Test Current: 10 A, Operating Voltage: 250 VAC, Contact Diameter: 1.93 mm, Contact Type: Socket, Contact Mating Area Plating Material: Tin, Wire Contact Termination Area Plating Material: None, Contact Retention Within Housing: With, Termination End Plating Material: Tin, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 0.91 - 1.37 mm, Wire Size: 28 - 22 AWG, Wire Size: 0.05 -0.4 mm², Operating Temperature Range: -55 - 105 °C, For Use With: CPC Connectors.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 28-22 | |
| Insulation diameter | 0.91-1.37 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.08-0.34 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
