2098250-3 | AMP

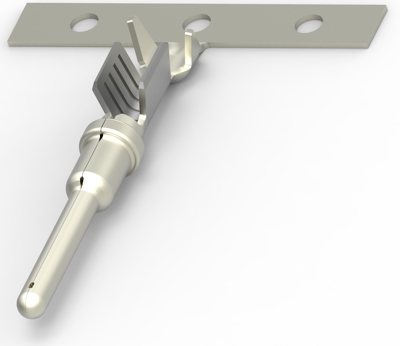

Pin contact, 0.75 mm², AWG 18, crimp connection, nickel-plated, 2098250-3
Unit Price (€ / pc.)
0.595 € *
Available: 0 pcs.
Leadtime: On Request **
Pin contact, 2098250-3, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Pin, Mating Pin Diameter: 1.59 mm, Interface Plating: Nickel (Ni), Contact Termination Area Plating Material: Tin (Sn), Termination Method: Crimp, Wire Size: 18 AWG, Wire Size: 0.8 - 1.5 mm², Wire Size Search: 18 AWG, Wire Size Search: 0.8 mm², 1 mm², 1.5 mm², Operating Temperature Range: -40 - 120 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 18 | |
| Insulation diameter | 1.3-1.33 mm | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | tin-plated | |
| contact surface | nickel-plated | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
