213847-3 | AMP

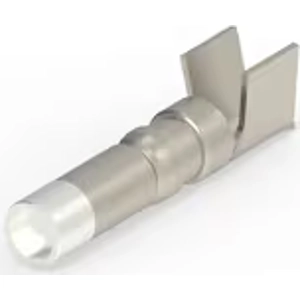

Receptacle, 2.0-3.0 mm², AWG 14-12, crimp connection, 213847-3
Unit Price (€ / pc.)
14.1610 € *
Available: 0 pcs.
Available in 5 Days: 500 pcs.
Leadtime: 33 Weeks **
Total Price:
14.16 € *
Price list
Quantity
Price per unit*
10 pcs.
14.1610 €
40 pcs.
12.2094 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 213847-3, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 1, Test Current: 45 A, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Silver, Contact Current Rating (Max): 50 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 3.18 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Snap-In, Wire Insulation Support: Without, Wire Size: 14 - 12 AWG, Wire Size: 2 - 3 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 14-12 | |
| Contact connection | crimp connection | |
| Contact material | copper | |
| Contact surface Connection range | silver-plated | |
| Contact surface mating area | silver-plated | |
| Cable cross-section | 2.0-3.0 mm² |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
