282110-1 | AMP
Receptacle, 0.75-1.5 mm², AWG 18-15, crimp connection, tin-plated, 282110-1
Unit Price (€ / pc.)
0.0666 € *
Available: 5,630 pcs.
Available in 5 Days: 296,000 pcs.
Leadtime: 26 Weeks **

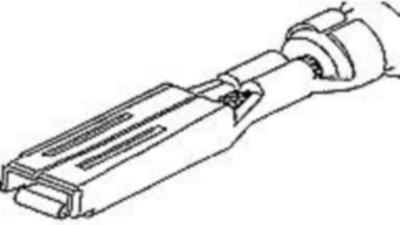

Socket contact, 282110-1, AMP
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal Type: Receptacle, Mating Tab Width: 1.5 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 18 - 15 AWG, Wire Size: 0.75 - 1.5 mm², Wire Size Search: 0.75 mm², 1 mm², 1.25 mm², 1.5 mm², Wire Size Search: 15 AWG, 16 AWG, 17 AWG, 18 AWG, Wire Insulation Diameter: 1.7 - 3.3 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 - 125 °C, Compatible With Wire Base Material: Copper.
Technical specifications
| Ausführung | Buchsenkontakt | |
| AWG-Leiterquerschnitt | AWG 18-15 | |
| Isolationsdurchmesser | 1,7-3,3 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Phosphorbronze | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche | verzinnt | |
| Leiterquerschnitt | 0,75-1,5 mm² |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Rolle mit 4.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
