282404-1 | AMP

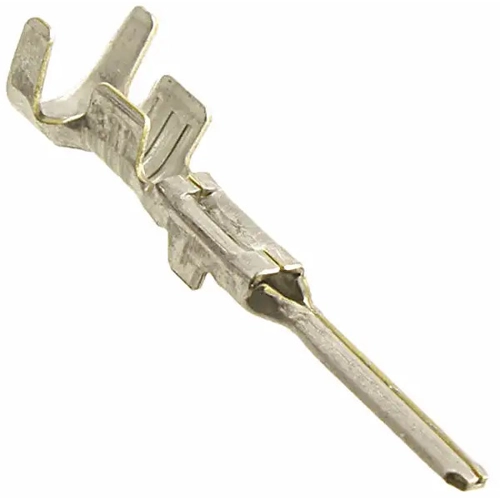

Pin contact, 0.35-0.5 mm², AWG 22-20, crimp connection, tin-plated, 282404-1
Unit Price (€ / pc.)
0.0583 € *
Available: 4,750 pcs.
Leadtime: On Request **
Total Price:
2.92 € *
Price list
Quantity
Price per unit*
50 pcs.
0.0583 €
100 pcs.
0.0536 €
500 pcs.
0.0488 €
*incl. VAT plus shipping costs
**Subject to prior sale
Tab contact, 282404-1, AMP
Sealable: Yes, Primary Locking Feature: Clean Body, Terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal Type: Tab, Mating Tab Width: 1.5 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 22 - 20 AWG, Wire Size: 0.35 - 0.5 mm², Wire Size Search: 0.35 mm², 0.4 mm², 0.5 mm², Wire Size Search: 20 AWG, 21 AWG, 22 AWG, Wire Insulation Diameter: 1.2 - 1.6 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 - 125 °C, Compatible With Wire Base Material: Copper.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 22-20 | |
| Insulation diameter | 1.2-1.6 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.35-0.5 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
