282438-1 | AMP

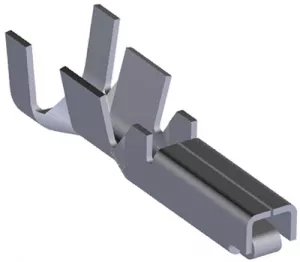

Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 282438-1
Unit Price (€ / pc.)
0.1856 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.19 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1856 €
50 pcs.
0.1690 €
100 pcs.
0.1523 €
500 pcs.
0.1380 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 282438-1, AMP
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.5 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.5 - 1 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², Wire Insulation Diameter: 1.2 - 2 mm, Operating Temperature Range: -40 - 125 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 20-17 | |
| Insulation diameter | 1.2-2 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.5-1.0 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
