293322-1 | AMP

Name: Receptacle, 0.3-0.8 mm², AWG 22-18, crimp connection, 293322-1
Brand: AMP
SKU: 35P3879
Price: 0.09 EUR
Availability: OutOfStock

Receptacle, 0.3-0.8 mm², AWG 22-18, crimp connection, 293322-1

Order No.: 35P3879

EAN: 4099889637205

MPN:

293322-1

Series: RAST 2.5

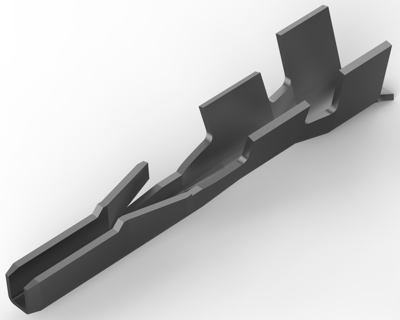

Image may differ

Key Specification:

Ausführung Buchsenkontakt

Leiterquerschnitt 0,3-0,8 mm²

AWG-Leiterquerschnitt AWG 22-18

Kontaktanschluss Crimpanschluss

Kontaktmaterial Messing

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0893 € *

Available: 0 pcs.

Leadtime: 20 Weeks **

Total Price:

0.89 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Wire-to-board connector contact, 293322-1, AMP

Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Contact Base Material: Brass, Contact Type: Tab, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 6 A, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1.4 - 2.5 mm, Wire Size: 22 - 18 AWG, Wire Size: 0.3 - 0.8 mm², Operating Temperature Range: -40 - 110 °C.

Technical specifications

	Ausführung	Buchsenkontakt
	AWG-Leiterquerschnitt	AWG 22-18
	Isolationsdurchmesser	1,4-2,5 mm
	Kontaktanschluss	Crimpanschluss
	Kontaktmaterial	Messing
	Kontaktoberfläche Anschlussbereich	verzinnt
	Kontaktoberfläche Steckbereich	verzinnt
	Leiterquerschnitt	0,3-0,8 mm²
