345160-1 | AMP

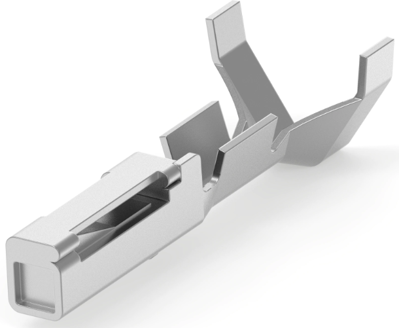

Receptacle, 0.2-0.5 mm², AWG 24-20, crimp connection, tin-plated, 345160-1
Unit Price (€ / pc.)
0.0833 € *
Available: 0 pcs.
Available in 5 Days: 79,055 pcs.
Leadtime: 29 Weeks **
Total Price:
0.08 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.0833 €
15000 pcs.
0.0785 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 345160-1, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.2 - 0.5 mm², Wire Size Search: 0.2 mm², 0.22 mm², 0.25 mm², 0.3 mm², 0.35 mm², 0.4 mm², 0.5 mm², Wire Size Search: 20 AWG, 21 AWG, 22 AWG, 23 AWG, Wire Insulation Diameter: 1.2 - 2 mm, 110 °C, 120 °C, 125 °C, Operating Temperature Range: -40 - 125 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 1.2-2 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.2-0.5 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
