345164-1 | AMP

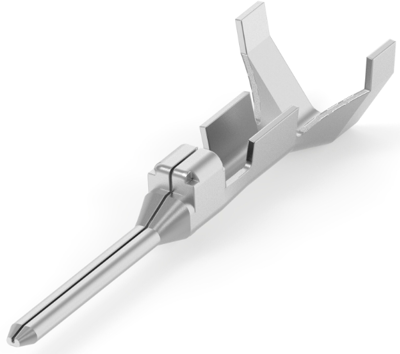

Tab, 0.2-0.5 mm², AWG 24-20, crimp connection, tin-plated, 345164-1
Unit Price (€ / pc.)
0.2202 € *
Available: 0 pcs.
Available in 5 Days: 5,000 pcs.
Leadtime: 22 Weeks **
Total Price:
0.22 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.2202 €
10000 pcs.
0.2071 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat connector, 345164-1, TE Connectivity
Sealable: No, Primary Locking Feature: Clean Body, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1 mm, Mating Tab Thickness: 0.64 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 0.2 -0.5 mm², Wire Size Search: 20 AWG, 21 AWG, 22 AWG, 23 AWG, Wire Size Search: 0.2 mm², 0.22 mm², 0.25 mm², 0.3 mm², 0.35 mm², 0.4 mm², 0.5 mm², Wire Insulation Diameter: 1.2 - 2 mm.
Technical specifications
| Version | tab | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 1.2-2 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| contact surface | tin-plated | |
| Cable cross-section | 0.2-0.5 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
