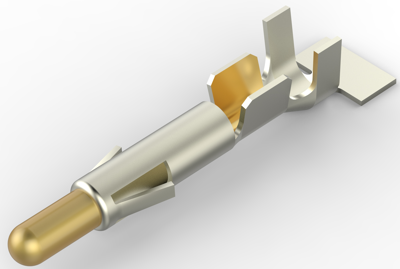

350218-2 | AMP
Pin contact, 0.52-2.08 mm², AWG 20-14, crimp connection, gold-plated, 350218-2
Unit Price (€ / pc.)
0.3927 € *
Available: 0 pcs.
Leadtime: 31 Weeks **
Total Price:
7,854.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
20000 pcs.
0.3927 €
Power contact, 350218-2, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 19 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 2.11 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 14 AWG, Wire Size: 0.52 - 2.08 mm², Accepts Wire Insulation Diameter Range: 1.52 - 3.3 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | Stiftkontakt | |
| Cable cross-section | 0,52-2,08 mm² | |
| AWG cross-section | AWG 20-14 | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| Contact surface mating area | vergoldet | |
| contact surface | vergoldet | |
| Contact surface Connection range | vergoldet | |
| Insulation diameter | 1,52-3,3 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369040 |
| Original Packaging | Rolle mit 5.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
