350218-3 | AMP
Pin contact, 0.52-2.08 mm², AWG 20-14, crimp connection, 350218-3
Unit Price (€ / pc.)
0.0595 € *
Available: 0 pcs.
Available in 5 Days: 40,000 pcs.
Leadtime: 23 Weeks **
Total Price:
0.06 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.0595 €
15000 pcs.
0.0559 €
*incl. VAT plus shipping costs
**Subject to prior sale

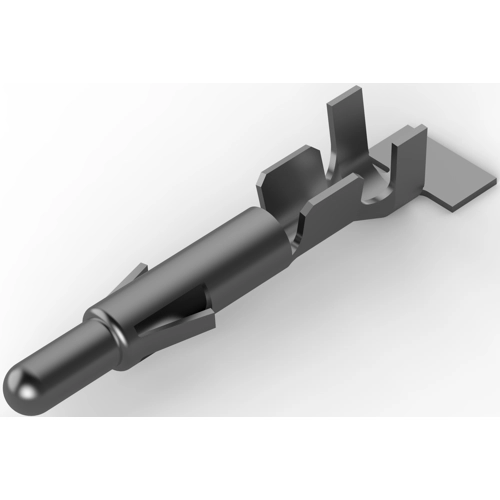

Power contact, 350218-3, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 19 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 2.11 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 14 AWG, Wire Size: 0.52 - 2.08 mm², Accepts Wire Insulation Diameter Range: 1.52 - 3.3 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Ausführung | Stiftkontakt | |
| AWG-Leiterquerschnitt | AWG 20-14 | |
| Isolationsdurchmesser | 1,52-3,3 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Phosphorbronze | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | verzinnt | |
| Leiterquerschnitt | 0,52-2,08 mm² |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85369040 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
