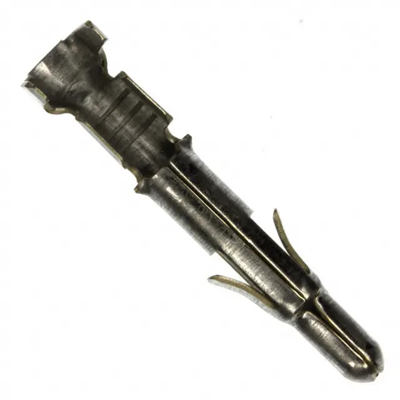

350547-1 | AMP
Pin contact, 0.5-2.0 mm², AWG 20-14, crimp connection, tin-plated, 350547-1
Unit Price (€ / pc.)
0.1618 € *
Available: 0 pcs.
Available in 5 Days: 20,814 pcs.
Leadtime: 18 Weeks **
Total Price:
0.16 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.1618 €
3000 pcs.
0.1535 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin contact, 350547-1, AMP
Power Contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 19 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 2.13 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 14 AWG, Wire Size: 0.5 - 2 mm², Accepts Wire Insulation Diameter Range: 1.52 - 3.3 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 20-14 | |
| Insulation diameter | 1.52-3.3 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.5-2.0 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
