350551-1 | AMP
Receptacle, 0.5-2.0 mm², AWG 20-14, crimp connection, tin-plated, 350551-1
Unit Price (€ / pc.)
0.2892 € *
Available: 4 pcs.
Leadtime: On Request **
Total Price:
0.58 € *
Price list
Quantity
Price per unit*
2 pcs.
0.2892 €
10 pcs.
0.2535 €
50 pcs.
0.2154 €
100 pcs.
0.1773 €
*incl. VAT plus shipping costs
**Subject to prior sale

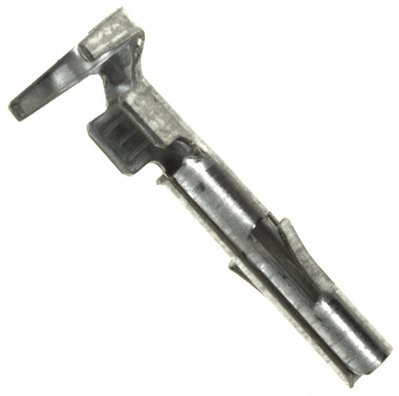

Female contact for general-purpose Mate-N-Lok connectors.
Contact material: brass oder phosphor bronze. Contact finish: tinned or selective gold-plating.
With contact made of brass.
Technical attributes (type, for wire cross-section, insulation diameter, dimension L, contact finish): 0-0350551-1, 0.5 to 2.1 mm², 3.3 to 5.1 mm, L 19.8 mm, tinned
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 20-14 | |
| Insulation diameter | 3.3-5.08 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.5-2.0 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
