350552-3 | AMP

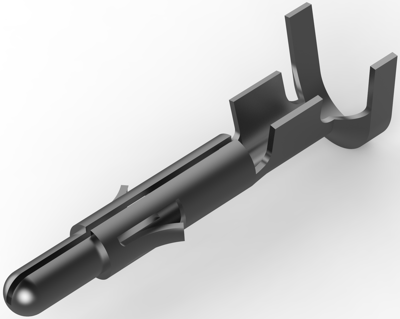

Pin contact, 0.5-2.0 mm², AWG 20-14, crimp connection, 350552-3
Unit Price (€ / pc.)
0.2535 € *
Available: 0 pcs.
Available in 5 Days: 16,352 pcs.
Leadtime: 18 Weeks **
Total Price:
0.25 € *
Price list
Quantity
Price per unit*
350 pcs.
0.2535 €
2100 pcs.
0.2118 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 350552-3, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 19 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 2.13 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 14 AWG, Wire Size: 0.5 - 2 mm², Accepts Wire Insulation Diameter Range: 3.3 - 5.08 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 20-14 | |
| Insulation diameter | 3.3-5.08 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.5-2.0 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
