350558-4 | AMP

Pin contact, 0.8-0.9 mm², AWG 18, crimp connection, 350558-4

Order No.: 71P8124
EAN: 4099889985511
MPN:
350558-4
AMP
350558-4 AMP Crimp Contacts Image 1

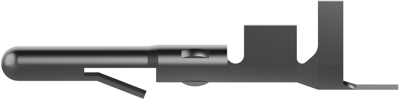

350558-4 AMP Crimp Contacts Image 2
350558-4 AMP Crimp Contacts Image 3

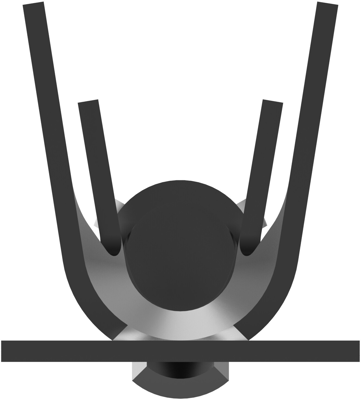

350558-4 AMP Crimp Contacts Image 4

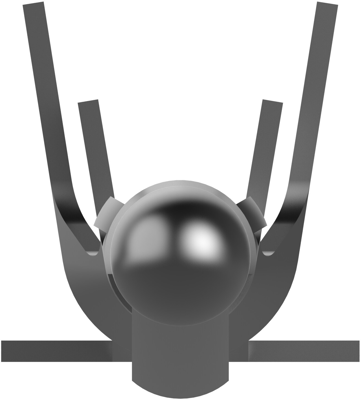

350558-4 AMP Crimp Contacts Image 5
Image may differ
Unit Price (€ / pc.)
0.1916 € *
Available: 0 pcs.
Available in 5 Days: 10,320 pcs.
Leadtime: 10 Weeks **
Total Price:
0.19 € *
Price list
Quantity
Price per unit*
3000 pcs.
0.1916 €
6000 pcs.
0.1797 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power key connector, 350558-4, AMP

The 350558-4 is a power key connector for power circuits of home appliances, especially targeting gas appliances. With a clear clicking sound, contact insertion can be made easy. The double lock plate provides for complete loading of contacts. Locking levers are surrounded by walls, which protect levers and prevent tangling with wires. This connector is designed to release bubbles created by the process of potting, housing lances also help prevent tangling of wired contacts.

Features

  • Compact design with 19.4 mm mated height
  • Power circuit connector with 5.0 mm contact centerline
Technical specifications
Version pin contact
AWG cross-section AWG 18
Insulation diameter 2.92 mm
Contact connection crimp connection
Contact material phosphor bronze
Contact surface Connection range tin-plated
Contact surface mating area tin-plated
Cable cross-section 0.8-0.9 mm²
Logistics
Country of origin CN
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
