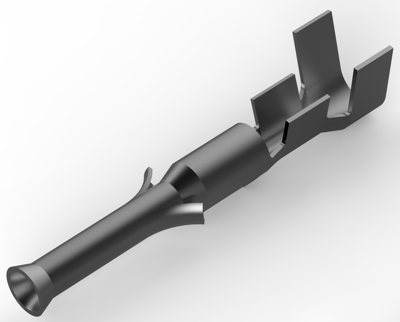

350628-1 | AMP
Receptacle, 0.2-0.82 mm², AWG 24-18, crimp connection, 350628-1
Order No.: 34P6831
EAN: 4099889635034
MPN:
350628-1
Unit Price (€ / pc.)
0.0643 € *
Available: 0 pcs.
Available in 5 Days: 52,000 pcs.
Leadtime: 28 Weeks **
Total Price:
0.06 € *
Price list
Quantity
Price per unit*
6500 pcs.
0.0643 €
13000 pcs.
0.0559 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 350628-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Fabrication: Stamped & Formed, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 9 A, Contact Type: Socket, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 18 AWG, Wire Size: 0.2 - 0.82 mm², Accepts Wire Insulation Diameter Range: 1.27 - 2.79 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 24-18 | |
| Insulation diameter | 1.27-2.79 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.2-0.82 mm² |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
