350629-5 | AMP

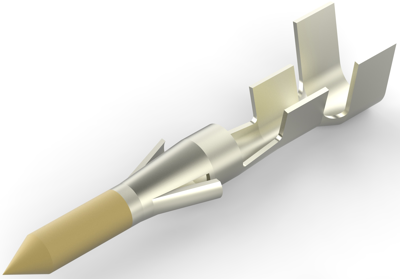

Pin contact, 0.2-0.82 mm², AWG 24-18, crimp connection, 350629-5
Order No.: 34P6829
EAN: 4099889635027
MPN:
350629-5
Unit Price (€ / pc.)
0.2642 € *
Available: 0 pcs.
Available in 5 Days: 18,000 pcs.
Leadtime: 20 Weeks **
Power contact, 350629-5, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Fabrication: Stamped & Formed, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 9 A, Contact Type: Pin, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 18 AWG, Wire Size: 0.2 -0.82 mm², Accepts Wire Insulation Diameter Range: 1.27 - 2.79 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | Stiftkontakt | |
| AWG cross-section | AWG 24-18 | |
| Insulation diameter | 1,27-2,79 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| Contact surface Connection range | vernickelt | |
| Contact surface mating area | vergoldet | |
| Cable cross-section | 0,2-0,82 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
