350654-1 | AMP

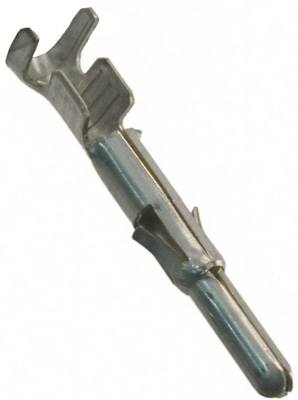

Pin contact, 0.5-2.0 mm², AWG 20-14, crimp connection, tin-plated, 350654-1
Unit Price (€ / pc.)
0.1488 € *
Available: 1,790 pcs.
Available in 5 Days: 20,000 pcs.
Leadtime: 20 Weeks **
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1488 €
100 pcs.
0.1321 €
500 pcs.
0.1131 €
1000 pcs.
0.0916 €
5000 pcs.
0.0750 €
*incl. VAT plus shipping costs
**Subject to prior sale
Belted articles on original reels.
Contact material: brass. Contact finish: tinned.
Technical attributes (type, for wire cross-section, insulation diameter, dimension L, number of grounding pins per reel): 0-0350654-1, 0.5 to 2.1 mm², 1.5 to 3.3 mm, 22.6 mm, 5000 items
Technical specifications
| Ausführung | Stiftkontakt | |
| AWG-Leiterquerschnitt | AWG 20-14 | |
| Isolationsdurchmesser | 1,52-3,3 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | verzinnt | |
| Kontaktoberfläche | verzinnt | |
| Leiterquerschnitt | 0,5-2,0 mm² |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Rolle mit 5.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
