350690-1 | AMP

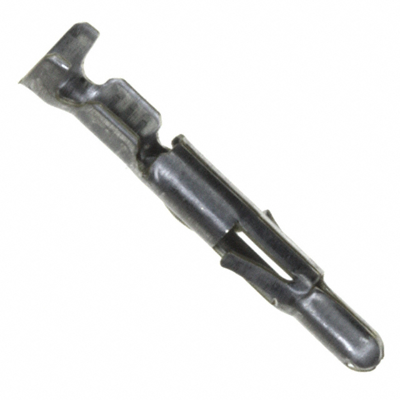

Pin contact, 0.2-0.8 mm², AWG 24-18, crimp connection, tin-plated, 350690-1
Unit Price (€ / pc.)
0.1880 € *
Available: 276 pcs.
Leadtime: On Request **
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1880 €
10 pcs.
0.1654 €
50 pcs.
0.1404 €
100 pcs.
0.1154 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin contact, 350690-1, AMP
Power Contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 19 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 2.13 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 18 AWG, Wire Size: 0.2 - 0.8 mm², Accepts Wire Insulation Diameter Range: 1.02 - 2.54 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 24-18 | |
| Insulation diameter | 1.02-2.54 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.2-0.8 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
