350707-2 | AMP

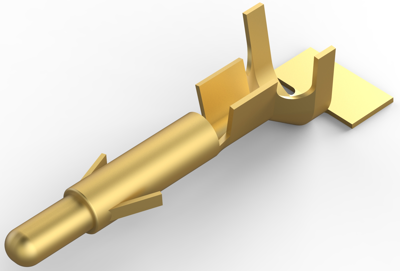

Pin contact, 0.25-0.5 mm², AWG 20-14, crimp connection, 350707-2
Order No.: 35P5186
EAN: 4099889638097
MPN:
350707-2
Unit Price (€ / pc.)
0.7973 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
7,973.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10000 pcs.
0.7973 €
Power contact, 350707-2, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Shape & Form: Split, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 19 A, Contact Type: Pin, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Wire Insulation Support: With, Wire Size: 20 - 14 AWG, Wire Size: 0.5 - 0.25 mm², Wire Size: 1021 - 4106 CMA, Accepts Wire Insulation Diameter Range: 3.3 - 5.08 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | Stiftkontakt | |
| AWG cross-section | AWG 20-14 | |
| Insulation diameter | 3,3-5,08 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| Contact surface Connection range | vergoldet | |
| Contact surface mating area | vergoldet | |
| Cable cross-section | 0,25-0,5 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
