350874-1 | AMP

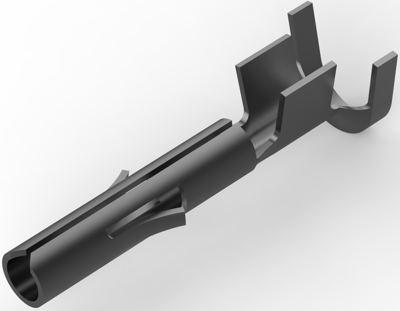

Receptacle, 0.8-2.0 mm², AWG 18-14, crimp connection, 350874-1
Unit Price (€ / pc.)
0.2618 € *
Available: 0 pcs.
Available in 5 Days: 2,500 pcs.
Leadtime: 25 Weeks **
Total Price:
1.31 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2618 €
100 pcs.
0.2309 €
250 pcs.
0.2023 €
500 pcs.
0.1666 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 350874-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 19 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 2.13 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 18 - 14 AWG, Wire Size: 0.8 - 2 mm², Accepts Wire Insulation Diameter Range: 3.3 - 5.08 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 18-14 | |
| Insulation diameter | 3,3-5,08 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| Contact surface Connection range | verzinnt | |
| Contact surface mating area | verzinnt | |
| Cable cross-section | 0,8-2,0 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
