353537-1 | AMP

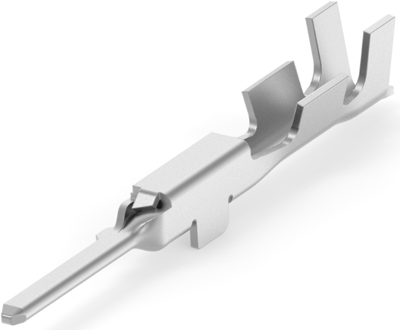

Tab, 0.3-0.5 mm², AWG 22-20, crimp connection, tin-plated, 353537-1
Unit Price (€ / pc.)
0.1916 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.19 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1916 €
50 pcs.
0.1749 €
100 pcs.
0.1571 €
500 pcs.
0.1416 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 353537-1, AMP
Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 22 - 20 AWG, Wire Size: 0.3 - 0.5 mm², Wire Size Search: 0.3 mm², 0.35 mm², 0.4 mm², 0.5 mm², Wire Size Search: 20 AWG, 21 AWG, 22 AWG, Wire Insulation Diameter: 1.4 - 1.7 mm, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Version | tab | |
| AWG cross-section | AWG 22-20 | |
| Insulation diameter | 1.4-1.7 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.3-0.5 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
