5-163085-2 | AMP

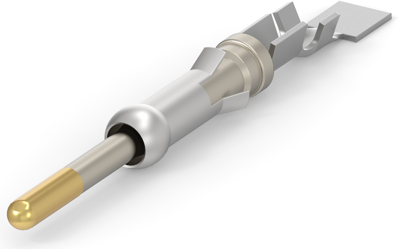

Name: Pin contact, 0.2-0.5 mm², AWG 24-20, crimp connection, 5-163085-2
Brand: AMP
SKU: 71P9478
Price: 2.37 EUR
Availability: OutOfStock

Pin contact, 0.2-0.5 mm², AWG 24-20, crimp connection, 5-163085-2

Order No.: 71P9478

EAN: 4099889985528

MPN:

5-163085-2

Series: Type III+

Image may differ

Key Specification:

Version pin contact

Cable cross-section 0.2-0.5 mm²

AWG cross-section AWG 24-20

Contact connection crimp connection

Contact material brass

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.3681 € *

Available: 0 pcs.

Available in 5 Days: 4,200 pcs.

Leadtime: 45 Weeks **

Add to Cart

Total Price:

2.37 € *

Price list

Quantity

Price per unit*

200 pcs.

2.3681 €

400 pcs.

2.2253 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Power contact, 5-163085-2, AMP

Power contact, Contact, Precious metal, 24 -20 AWG Wire size, 0.2-0.5 mm² Wire size, Wire & Cable, Crimp, Power & Signal, Pin.

Technical specifications

	Version	pin contact
	AWG cross-section	AWG 24-20
	Insulation diameter	1.1-1.8 mm
	Contact connection	crimp connection
	Contact material	brass
	Contact surface Connection range	gold-plated
	Contact surface mating area	tin-plated
	Cable cross-section	0.2-0.5 mm²
