5-583853-4 | AMP

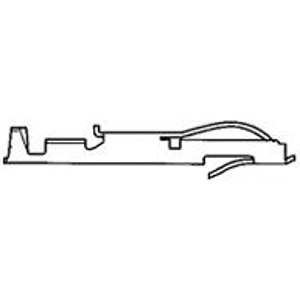

Plug-in socket, 0.2-0.6 mm², AWG 24-20, crimp connection, 5-583853-4
Order No.: 39P2122
EAN: 4099889652222
MPN:
5-583853-4
Unit Price (€ / pc.)
1.2852 € *
Available: 0 pcs.
Leadtime: On Request **
Wire-to-board connector contact, 5-583853-4, AMP
Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 5 A, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Centerline (Pitch): 2.54 mm,3.18 mm,3.96 mm, Accepts Wire Insulation Diameter Range: 1.22 - 1.52 mm, Wire Size: 24 - 20 AWG, Wire Size: 404 - 1020 CMA, Wire Size: 0.2 - 0.6 mm², Operating Temperature Range: -40 - 85 °C.
Technical specifications
| Version | plug-in socket | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 1.22-1.52 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | gold-plated | |
| Cable cross-section | 0.2-0.6 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
