5-963715-1 | AMP

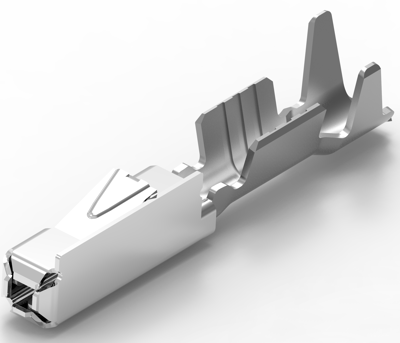

Receptacle, 0.5-0.75 mm², AWG 20-18, crimp connection, tin-plated, 5-963715-1
Unit Price (€ / pc.)
0.0952 € *
Available: 12,067 pcs.
Leadtime: 14 Weeks **
Total Price:
4.76 € *
Price list
Quantity
Price per unit*
50 pcs.
0.0952 €
100 pcs.
0.0845 €
500 pcs.
0.0762 €
1000 pcs.
0.0631 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 5-963715-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: .63 mm, Mating Tab Thickness: .63 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 20 AWG, Wire Size: 0.5 - 0.75 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², Wire Size Search: 18 AWG, 19 AWG, Wire Insulation Diameter: 1.3 - 1.9 mm, Operating Temperature Range: -40 - 120 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 20-18 | |
| Insulation diameter | 1.3-1.9 mm | |
| Contact connection | crimp connection | |
| Contact material | copper-nickel alloy | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.5-0.75 mm² |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
