5066682-9 | AMP

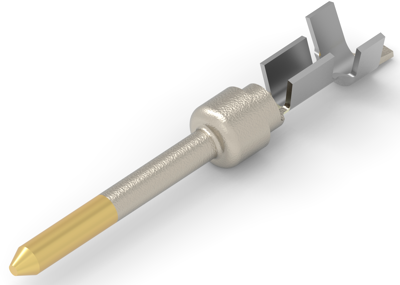

Pin contact, 0.08-0.2 mm², AWG 28-24, crimp connection, gold-plated, 5066682-9
Unit Price (€ / pc.)
0.1452 € *
Available: 0 pcs.
Available in 5 Days: 48,000 pcs.
Leadtime: 17 Weeks **
Total Price:
1,742.16 € *
Price list
Quantity
Price per unit*
12000 pcs.
0.1452 €
24000 pcs.
0.1428 €
*incl. VAT plus shipping costs
**Subject to prior sale
D-Sub connector contact, 5066682-9, AMP
Grade: Standard, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, PCB Contact Termination Area Plating Material: Tin, Contact Type: Pin, D-Sub Contact Size: 20, Contact Base Material: Brass, Contact Mating Area Plating Material: Gold, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.27 - 1.52 mm, Wire Size: 28 - 24 AWG, Wire Size: 0.08 - 0.2 mm², Operating Temperature Range: -55 - 105 °C, For Use With: AMPLIMITE HDP-20,CPC Connectors.
Technical specifications
| Ausführung | Stiftkontakt | |
| AWG-Leiterquerschnitt | AWG 28-24 | |
| Isolationsdurchmesser | 1,27-1,52 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche Anschlussbereich | vergoldet | |
| Kontaktoberfläche Steckbereich | vergoldet | |
| Kontaktoberfläche | vergoldet | |
| Leiterquerschnitt | 0,08-0,2 mm² |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
