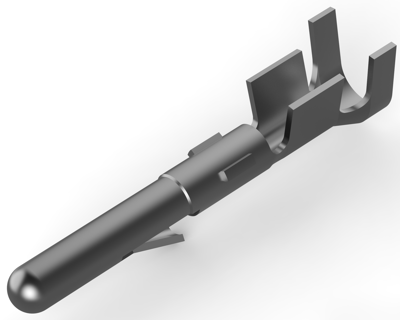

60618-4 | AMP
Pin contact, 0.2-0.82 mm², AWG 24-18, crimp connection, 60618-4
Unit Price (€ / pc.)
0.4403 € *
Available: 0 pcs.
Leadtime: 28 Weeks **
Total Price:
0.44 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4403 €
10 pcs.
0.3927 €
50 pcs.
0.3451 €
100 pcs.
0.2975 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 60618-4, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Shape & Form: Round, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 15 A, Contact Type: Pin, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 18 AWG, Wire Size: 0.2 - 0.82 mm², Accepts Wire Insulation Diameter Range: 2.54 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Ausführung | Stiftkontakt | |
| AWG-Leiterquerschnitt | AWG 24-18 | |
| Isolationsdurchmesser | 2,54 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Phosphorbronze | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | verzinnt | |
| Leiterquerschnitt | 0,2-0,82 mm² |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
