61320-1 | AMP

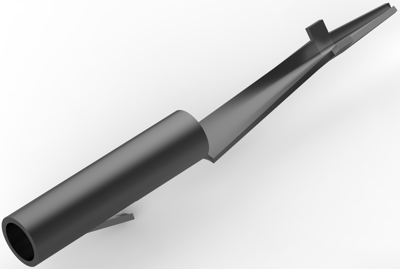

Receptacle, crimp connection, 61320-1
Unit Price (€ / pc.)
0.1975 € *
Available: 0 pcs.
Available in 5 Days: 26,500 pcs.
Leadtime: 25 Weeks **
Total Price:
0.20 € *
Price list
Quantity
Price per unit*
500 pcs.
0.1975 €
2300 pcs.
0.1856 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 61320-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 15 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 2.13 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Board Mount, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | receptacle | |
| Insulation diameter | 0.78-0.81 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
