638078-1 | AMP

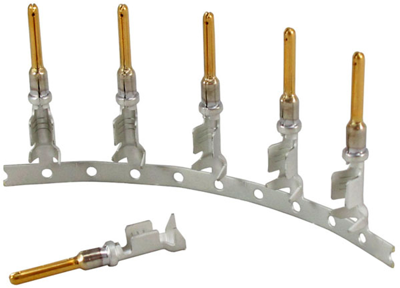

Pin contact, 0.8-2.0 mm², AWG 18-14, crimp connection, gold-plated, 638078-1
Unit Price (€ / pc.)
0.4165 € *
Available: 0 pcs.
Available in 5 Days: 8,000 pcs.
Leadtime: 8 Weeks **
Contacts for motor vehicles, 638078-1, TE Connectivity
Sealable: No, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Pin, Mating Pin Diameter: 1.59 mm, Automotive terminal Interface Plating: Gold (Au), Contact Termination Area Plating Material: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 18 - 14 AWG, Wire Size: 0.8 - 2 mm², Wire Size Search: 0.8 mm², 0.85 mm², 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², 2 mm², Wire Size Search: 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, Wire Insulation Diameter: 2.26 - 3.32 mm, Operating Temperature Range: -40 - 120 °C.
Technical specifications
| Version | Stiftkontakt | |
| AWG cross-section | AWG 18-14 | |
| Insulation diameter | 2,26-3,32 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupferlegierung | |
| Contact surface Connection range | verzinnt | |
| contact surface | vergoldet | |
| Cable cross-section | 0,8-2,0 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
