640309-3 | AMP
Pin contact, 3.31-5.26 mm², AWG 12-10, crimp connection, tin-plated, 640309-3
Unit Price (€ / pc.)
0.4760 € *
Available: 411 pcs.
Available in 5 Days: 681 pcs.
Leadtime: 24 Weeks **
Total Price:
0.48 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4760 €
10 pcs.
0.4165 €
50 pcs.
0.3808 €
100 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale

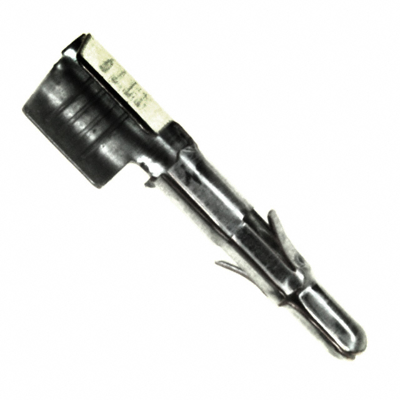

Male contact for general-purpose Mate-N-Lok connectors.
Contact material: brass oder phosphor bronze. Contact finish: tinned oder selective gold-plating. Contact version: standard or slotted.
With standard contact made of phosphor bronze.
Technical attributes (type, for wire cross-section, insulation diameter, dimension L, contact finish): 0-0640309-3, 3.0 to 5.0 mm², max. 5.1 mm, L 20.1 mm, tinned
Technical specifications
| Version | Stiftkontakt | |
| Cable cross-section | 3,31-5,26 mm² | |
| AWG cross-section | AWG 12-10 | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface mating area | verzinnt | |
| contact surface | verzinnt | |
| Contact surface Connection range | verzinnt | |
| Insulation diameter | 0,2 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
