640310-3 | AMP
Receptacle, 3.31-5.26 mm², AWG 12-10, crimp connection, tin-plated, 640310-3
Unit Price (€ / pc.)
0.4165 € *
Available: 60 pcs.
Leadtime: On Request **
Total Price:
0.42 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4165 €
10 pcs.
0.3689 €
50 pcs.
0.3332 €
100 pcs.
0.3023 €
*incl. VAT plus shipping costs
**Subject to prior sale

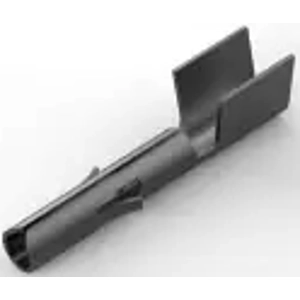

Female contact for general-purpose Mate-N-Lok connectors.
Contact material: phosphor bronze. Contact finish: tinned.

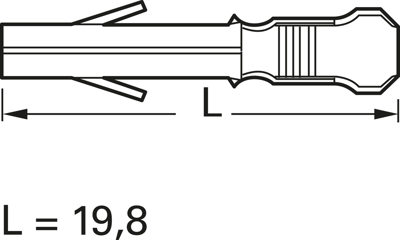

Technical attributes (type, for wire cross-section, insulation diameter, dimension L, contact finish): 0-0640310-3, 3.0 to 5.0mm²², max. 5.1 mm, L 19.8 mm, tinned
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 12-10 | |
| Insulation diameter | 0.2 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 3.31-5.26 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
