66505-3 | AMP
Receptacle, 0.08-0.2 mm², AWG 28-24, crimp connection, gold-plated, 66505-3
Unit Price (€ / pc.)
0.1511 € *
Available: 0 pcs.
Available in 5 Days: 340,000 pcs.
Leadtime: 10 Weeks **
Total Price:
0.15 € *
Price list
Quantity
Price per unit*
10000 pcs.
0.1511 €
20000 pcs.
0.1464 €
*incl. VAT plus shipping costs
**Subject to prior sale

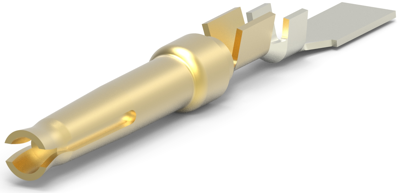

D-Sub connector contact, 66505-3, AMP
Grade: Standard, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, Contact Underplating Material: Nickel, Contact Type: Socket, D-Sub Contact Size: 20, Contact Base Material: Phosphor Bronze, Contact Mating Area Plating Material: Gold, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 0.76 - 1.02 mm, Wire Size: 28 - 24 AWG, Wire Size: 0.08 - 0.2 mm², Operating Temperature Range: -55 - 105 °C, For Use With: AMPLIMITE HDP-20,CPC Connectors.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 28-24 | |
| Insulation diameter | 0.76-1.02 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated | |
| Cable cross-section | 0.08-0.2 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
