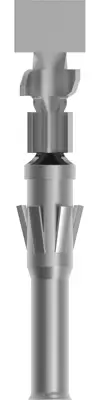

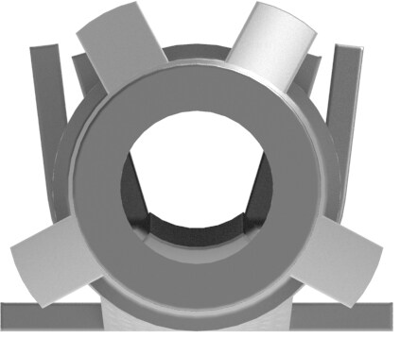

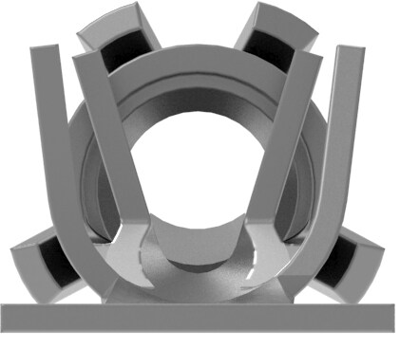

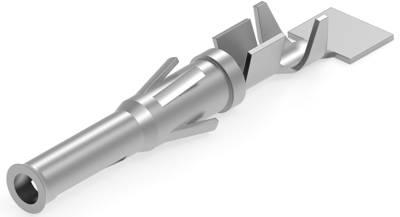

66582-2 | AMP

Name: Receptacle, 0.3-0.9 mm², AWG 22-18, crimp connection, 66582-2
Brand: AMP
SKU: 72P0874
Price: 0.31 EUR
Availability: OutOfStock

Receptacle, 0.3-0.9 mm², AWG 22-18, crimp connection, 66582-2

Order No.: 72P0874

EAN: 4099889986488

MPN:

66582-2

Series: Type IV

Image may differ

Key Specification:

Version receptacle

Cable cross-section 0.3-0.9 mm²

AWG cross-section AWG 22-18

Contact connection crimp connection

Contact material brass

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.3094 € *

Available: 0 pcs.

Available in 5 Days: 5,000 pcs.

Leadtime: 29 Weeks **

Add to Cart

Total Price:

0.31 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Power contact, 66582-2, AMP

Power contact, Contact, 250 VAC, 250 VDC, Tin, 22 -18 AWG Wire size, 0.3-0.9 mm² Wire size, Wire & Cable, Crimp, Signal, Socket.

Technical specifications

	Version	receptacle
	AWG cross-section	AWG 22-18
	Insulation diameter	1.27-2.79 mm
	Contact connection	crimp connection
	Contact material	brass
	Contact surface Connection range	tin-plated
	Contact surface mating area	tin-plated
	Cable cross-section	0.3-0.9 mm²
