745230-7 | AMP

Name: Receptacle, 0.4-0.8 mm², AWG 22-18, crimp connection, gold-plated, 745230-7
Brand: AMP
SKU: 36P8616
Price: 1.30 EUR
Availability: OutOfStock

Receptacle, 0.4-0.8 mm², AWG 22-18, crimp connection, gold-plated, 745230-7

Order No.: 36P8616

EAN: 4099889647808

MPN:

745230-7

Series: AMPLIMITE

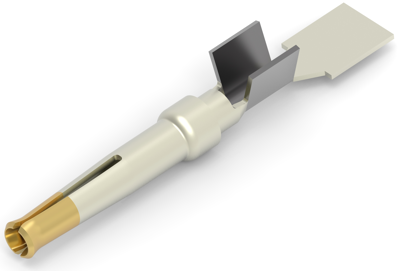

Image may differ

Key Specification:

Ausführung Buchsenkontakt

Leiterquerschnitt 0,4-0,8 mm²

AWG-Leiterquerschnitt AWG 22-18

Kontaktanschluss Crimpanschluss

Kontaktmaterial Phosphorbronze

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.2971 € *

Available: 0 pcs.

Available in 5 Days: 16,093 pcs.

Leadtime: 10 Weeks **

Total Price:

1.30 € *

Price list

Quantity

Price per unit*

1 pcs.

1.2971 €

10 pcs.

1.1781 €

50 pcs.

1.0591 €

100 pcs.

0.9520 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

D-Sub connector contact, 745230-7, AMP

Grade: Standard, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, Color Code: Yes, PCB Contact Termination Area Plating Material: Gold Flash, Contact Type: Socket, D-Sub Contact Size: 20, Contact Base Material: Phosphor Bronze, Contact Mating Area Plating Material: Gold Flash, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: Without, Accepts Wire Insulation Diameter Range: , Wire Size: 22 - 18 AWG, Wire Size: 0.4 - 0.8 mm², Operating Temperature Range: -55 - 105 °C.

Technical specifications

	Ausführung	Buchsenkontakt
	AWG-Leiterquerschnitt	AWG 22-18
	Isolationsdurchmesser	0,068 mm
	Kontaktanschluss	Crimpanschluss
	Kontaktmaterial	Phosphorbronze
	Kontaktoberfläche Steckbereich	vergoldet
	Kontaktoberfläche	vergoldet
	Leiterquerschnitt	0,4-0,8 mm²
