770146-5 | AMP
Receptacle, 0.205-0.79 mm², AWG 24-18, crimp connection, gold-plated, 770146-5
Order No.: 34P6860
EAN: 4099889635263
MPN:
770146-5
Unit Price (€ / pc.)
0.6545 € *
Available: 0 pcs.
Leadtime: On Request **

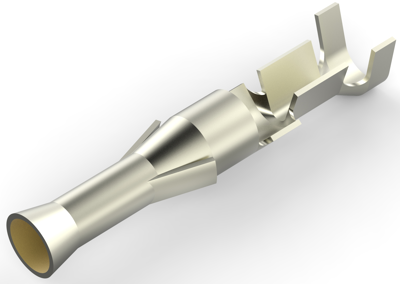

Connector contact, 770146-5, TE Connectivity
Discrete ., Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 250 VAC, 600 VAC, Contact Underplating Material: Nickel, Contact Type: Socket, Contact Mating Area Plating Material: Select Gold, Wire Contact Termination Area Plating Material: Gold, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 2.8 mm, Wire Size: 24 - 18 AWG, Wire Size: 0.3 -0.84 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 24-18 | |
| Insulation diameter | 2.8 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | gold-plated | |
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated | |
| Cable cross-section | 0.205-0.79 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
