770520-1 | AMP

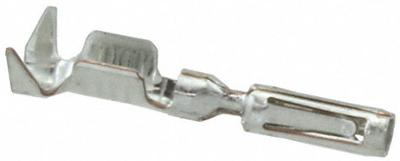

Receptacle, 0.5-1.5 mm², AWG 20-16, crimp connection, tin-plated, 770520-1
Unit Price (€ / pc.)
0.1964 € *
Available: 6,190 pcs.
Leadtime: On Request **
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
20 pcs.
0.1964 €
50 pcs.
0.1749 €
200 pcs.
0.1535 €
500 pcs.
0.1309 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket contact, 770520-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Crimp Type: F-Crimp, Terminal & Splice Type: Socket, Mating Pin Diameter: 1.3 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 16 - 20 AWG, Wire Size: 0.5 - 1.5 mm², Wire Size Search: 15 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG, 20 AWG, Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², Wire Insulation Diameter: 1.7 - 2.7 mm, Operating Temperature Range: -40 - 125 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 20-16 | |
| Insulation diameter | 1.7-2.7 mm | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| contact surface | tin-plated | |
| Cable cross-section | 0.5-1.5 mm² |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
