770520-3 | AMP

Receptacle, 0.5-1.3 mm², AWG 20-16, crimp connection, gold-plated, 770520-3

Order No.: 36P3777
EAN: 4099889646795
MPN:
770520-3
Series: AMPSEAL
AMP

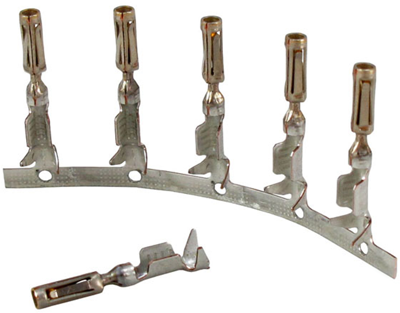

770520-3 AMP Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.7616 € *
Available: 3,390 pcs.
Available in 5 Days: 85,000 pcs.
Leadtime: 9 Weeks **
Total Price:
0.76 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7616 €
10 pcs.
0.7140 €
50 pcs.
0.6545 €
100 pcs.
0.5950 €
500 pcs.
0.5236 €
*incl. VAT plus shipping costs
**Subject to prior sale

Contacts for motor vehicles, 770520-3, TE Connectivity

Receptacle Style: 180°, Sealable: No, Crimp Type: F-Crimp, Terminal & Splice Type: Socket, Mating Pin Diameter: 1.3 mm, Automotive terminal Interface Plating: Gold (Au), Automotive terminal Termination Method: Crimp, Wire Size: 16 - 20 AWG, Wire Size: 0.5 - 1.5 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², Wire Size Search: 15 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG, 20 AWG, Wire Insulation Diameter: 1.7 - 2.7 mm, 110 °C, 120 °C, 125 °C, Operating Temperature Range: -40 - 125 °C.

Technical specifications
Version receptacle
AWG cross-section AWG 20-16
Insulation diameter 1.7-2.7 mm
Contact connection crimp connection
Contact material copper alloy
contact surface gold-plated
Cable cross-section 0.5-1.3 mm²
Logistics
Country of origin CZ
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
