770904-6 | AMP

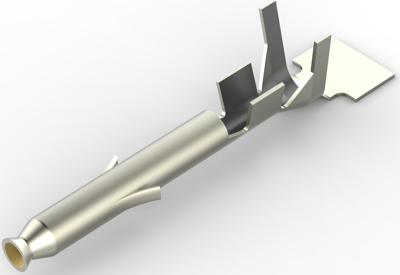

Receptacle, 0.3-0.9 mm², AWG 22-18, crimp connection, 770904-6
Unit Price (€ / pc.)
0.3213 € *
Available: 0 pcs.
Leadtime: 42 Weeks **
Total Price:
5,783.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
18000 pcs.
0.3213 €
Power contact, 770904-6, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 11.2 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 1 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 22 - 18 AWG, Wire Size: 0.3 - 0.9 mm², Accepts Wire Insulation Diameter Range: 1.5 - 2.39 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Ausführung | Buchsenkontakt | |
| AWG-Leiterquerschnitt | AWG 22-18 | |
| Isolationsdurchmesser | 1,5-2,39 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Phosphorbronze | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | vergoldet | |
| Leiterquerschnitt | 0,3-0,9 mm² |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85389091 |
Compliance
| RoHS konform | No |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
