776299-2 | AMP
Receptacle, 0.8-2.0 mm², AWG 18-14, crimp connection, nickel-plated, 776299-2
Unit Price (€ / pc.)
1.2614 € *
Available: 0 pcs.
Available in 5 Days: 505 pcs.
Leadtime: 18 Weeks **
Total Price:
1.26 € *
Price list
Quantity
Price per unit*
75 pcs.
1.2614 €
450 pcs.
1.0472 €
*incl. VAT plus shipping costs
**Subject to prior sale

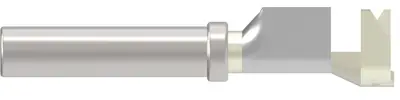

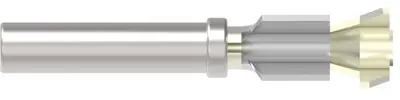

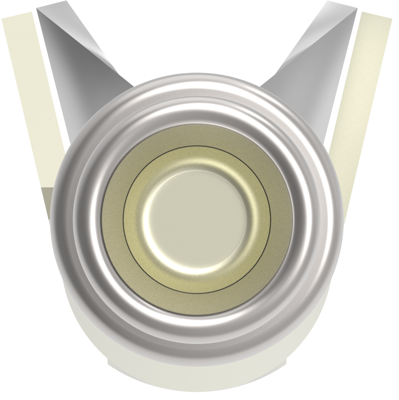

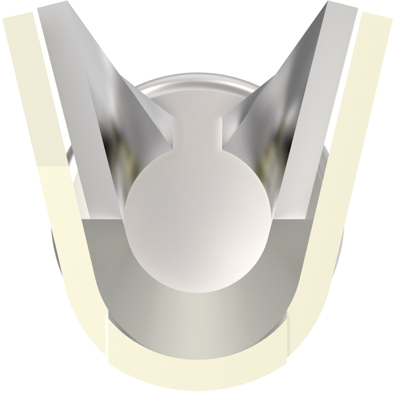

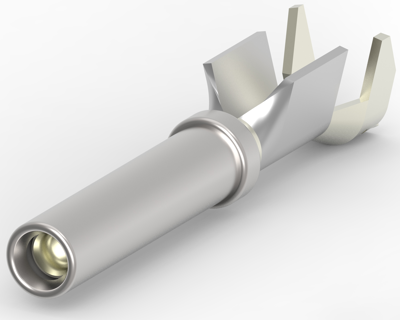

Socket contact, 776299-2, AMP
Sealable: No, Crimp Type: F-Crimp, Terminal Type: Socket, Interface Plating: Nickel (Ni), Contact Termination Area Plating Material: Nickel (Ni), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 18 - 14 AWG, Wire Size: .8 - 2 mm², Wire Size Search: 0.75 mm², 1 mm², 1.25 mm², 1.5 mm², 2 mm², Wire Size Search: 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, Wire Insulation Diameter: 2.26 - 3.32 mm, Insulation Requirement: Uninsulated, Compatible With Wire Base Material: Copper.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 18-14 | |
| Insulation diameter | 2.26-3.32 mm | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | nickel-plated | |
| contact surface | nickel-plated | |
| Cable cross-section | 0.8-2.0 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
