776300-2 | AMP

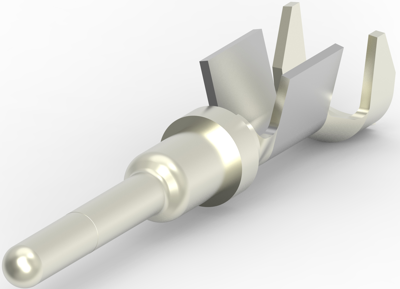

Name: Pin contact, 0.8-2.0 mm², AWG 18-14, crimp connection, nickel-plated, 776300-2
Brand: AMP
SKU: 36P3949
Price: 0.69 EUR
Availability: OutOfStock

Pin contact, 0.8-2.0 mm², AWG 18-14, crimp connection, nickel-plated, 776300-2

Order No.: 36P3949

EAN: 4099889647020

MPN:

776300-2

Series: AMPSEAL

Image may differ

Key Specification:

Ausführung Stiftkontakt

Leiterquerschnitt 0,8-2,0 mm²

AWG-Leiterquerschnitt AWG 18-14

Kontaktanschluss Crimpanschluss

Kontaktmaterial Kupferlegierung

Ordering Information:

Nicht an Privatkunden verkäuflich

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.6902 € *

Available: 0 pcs.

Leadtime: 18 Weeks **

Add to Cart

Total Price:

0.69 € *

Price list

Quantity

Price per unit*

1 pcs.

0.6902 €

10 pcs.

0.6069 €

50 pcs.

0.5474 €

100 pcs.

0.4760 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contacts for motor vehicles, 776300-2, TE Connectivity

Sealable: No, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Pin, Mating Pin Diameter: 1.59 mm, Automotive terminal Interface Plating: Nickel (Ni), Contact Termination Area Plating Material: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 18 - 14 AWG, Wire Size: 0.8 - 2 mm², Wire Size Search: 0.8 mm², 0.85 mm², 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², 2 mm², Wire Size Search: 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, Wire Insulation Diameter: 2.26 - 3.32 mm.

Technical specifications

	Ausführung	Stiftkontakt
	AWG-Leiterquerschnitt	AWG 18-14
	Isolationsdurchmesser	2,26-3,32 mm
	Kontaktanschluss	Crimpanschluss
	Kontaktmaterial	Kupferlegierung
	Kontaktoberfläche Anschlussbereich	verzinnt
	Kontaktoberfläche	vernickelt
	Leiterquerschnitt	0,8-2,0 mm²
