794217-1 | AMP
Receptacle, 0.05-0.13 mm², AWG 30-26, crimp connection, 794217-1
Unit Price (€ / pc.)
0.0785 € *
Available: 0 pcs.
Available in 5 Days: 14,000 pcs.
Leadtime: 28 Weeks **
Total Price:
0.08 € *
Price list
Quantity
Price per unit*
7000 pcs.
0.0785 €
14000 pcs.
0.0726 €
*incl. VAT plus shipping costs
**Subject to prior sale

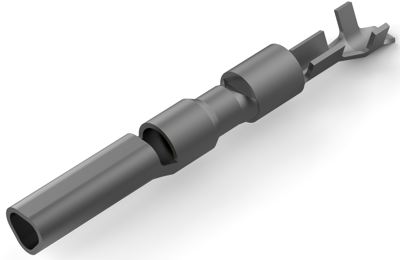

Power contact, 794217-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 10.7 A, Contact Type: Socket, Contact Retention Within Housing: Without, Mating Pin Diameter: 1 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 30 - 26 AWG, Wire Size: 0.05 -0.13 mm², Accepts Wire Insulation Diameter Range: 0.89 - 1.27 mm, Operating Temperature Range: -20 - 85 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 30-26 | |
| Insulation diameter | 0.89-1.27 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.05-0.13 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
