794224-1 | AMP

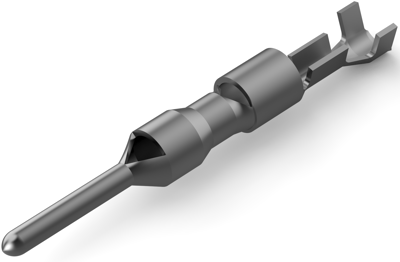

Pin contact, 0.05-0.15 mm², AWG 30-26, crimp connection, 794224-1
Unit Price (€ / pc.)
0.1357 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1,356.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10000 pcs.
0.1357 €
Power contact, 794224-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Contact Resistance: 20, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 10.5 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 1 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 30 - 26 AWG, Wire Size: 0.05 - 0.15 mm², Accepts Wire Insulation Diameter Range: 0.89 - 1.27 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Ausführung | Stiftkontakt | |
| AWG-Leiterquerschnitt | AWG 30-26 | |
| Isolationsdurchmesser | 0,89-1,27 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | verzinnt | |
| Leiterquerschnitt | 0,05-0,15 mm² |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
