794578-1 | AMP

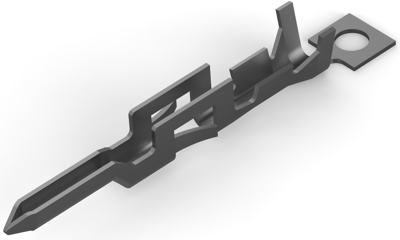

Pin contact, 0.12-0.35 mm², AWG 26-22, crimp connection, 794578-1
Unit Price (€ / pc.)
0.0821 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
2,134.86 € *
*incl. VAT plus shipping costs
**Subject to prior sale
26000 pcs.
0.0821 €
Power contact, 794578-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 9 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 1.14 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Wire Insulation Support: With, Wire Size: 26 - 22 AWG, Wire Size: 0.12 -0.35 mm², Wire Size: 254.1 - 642.5 CMA, Accepts Wire Insulation Diameter Range: 1.2 - 1.75 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Ausführung | Stiftkontakt | |
| AWG-Leiterquerschnitt | AWG 26-22 | |
| Isolationsdurchmesser | 1,2-1,75 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Phosphorbronze | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | verzinnt | |
| Leiterquerschnitt | 0,12-0,35 mm² |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
