794606-3 | AMP

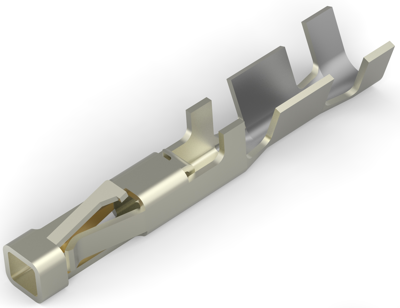

Receptacle, 0.2-0.5 mm², AWG 24-20, crimp connection, 794606-3
Unit Price (€ / pc.)
0.0964 € *
Available: 0 pcs.
Leadtime: On Request **
Power contact, 794606-3, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Operating Voltage: 250 VDC, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 5 A, Contact Type: Receptacle, Contact Retention Within Housing: With, Mating Square Post Dimension: 0.64 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 20 AWG, Wire Size: 0.2 -0.5 mm², Accepts Wire Insulation Diameter Range: 0.89 - 1.52 mm, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 0.89-1.52 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | gold-plated | |
| Cable cross-section | 0.2-0.5 mm² |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
