794610-1 | AMP
Receptacle, 0.2-0.52 mm², AWG 24-20, crimp connection, tin-plated, 794610-1
Unit Price (€ / pc.)
0.1523 € *
Available: 1,482 pcs.
Next delivery: 6,500 pcs. on 2025-03-06
Leadtime: 21 Weeks **
Total Price:
7.62 € *
Price list
Quantity
Price per unit*
50 pcs.
0.1523 €
100 pcs.
0.1392 €
500 pcs.
0.1214 €
1000 pcs.
0.1035 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable connector, 2- to 24-pole, 3.0 mm grid, type TE Connectivity/AMP Micro Mate-N-Lok.
3.0 mm grid, single- and dual-row; Rated voltage: 250 V. Rated current: max. 5.0 A. Insulation resistance: min. 1000 Mohm. Contact resistance: max. 20 mohm. Insertion force (pro contact): 6.67 N. Operating temperatures: -40 to +105 °C. Certifications: UL, CSA.

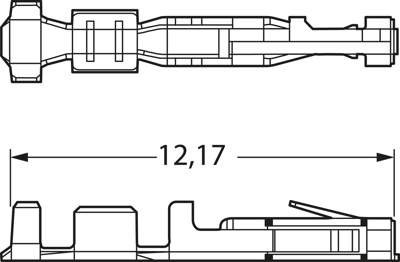

Corresponding snap-in female crimp contact.
Contact material: phosphor bronze. Contact finish: tinned, 15 µ or 30 µ gold plating. Wire cross-section: 0.05 to 0.12 mm² (AWG 30-26), or 0.20 to 0.50 mm² (AWG 24-20). Insulation diameter: 0.89 to 1.52 mm.
Technical attributes (type, for wire cross-section, contact finish material): 0-0794610-1, 0.20 to 0.50 mm² (AWG 24 bis 20), tinned
Technical specifications
| Ausführung | Buchsenkontakt | |
| AWG-Leiterquerschnitt | AWG 24-20 | |
| Isolationsdurchmesser | 0,89-1,52 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Phosphorbronze | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | verzinnt | |
| Kontaktoberfläche | verzinnt | |
| Leiterquerschnitt | 0,2-0,52 mm² |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
