925553-1 | AMP

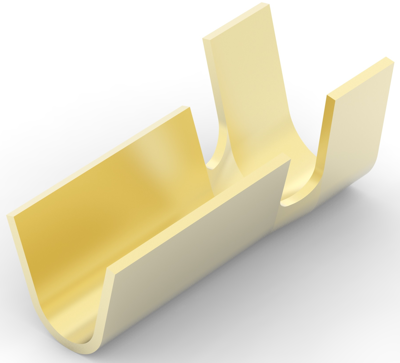

Pin contact, 1.0-2.5 mm², AWG 17-13.5, crimp connection, 925553-1
Order No.: 34P9768
EAN: 4099889636574
MPN:
925553-1
Unit Price (€ / pc.)
0.0595 € *
Available: 0 pcs.
Available in 5 Days: 448,000 pcs.
Leadtime: 23 Weeks **
Total Price:
0.06 € *
Price list
Quantity
Price per unit*
14000 pcs.
0.0595 €
84000 pcs.
0.0571 €
*incl. VAT plus shipping costs
**Subject to prior sale
Crimp wire pins, tabs and ferrules, 925553-1, AMP
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Insulated: No, Support Style: Insulation Support, Terminal & Splice Type: Pin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Pin, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 3.2 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: With, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 3.8 mm, Accepts Wire Insulation Diameter Range: 2.5 - 3.8 mm, Wire Size: 17 - 13 AWG, Wire Size: 1 - 2.5 mm², Wire Size: 2048 - 5178 CMA Heavy Duty: No, Packaging Quantity: 14000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Roll, Comment: According to DIN 46228, Part 2.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 17-13.5 | |
| Insulation diameter | 2.5-3.8 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Cable cross-section | 1.0-2.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
