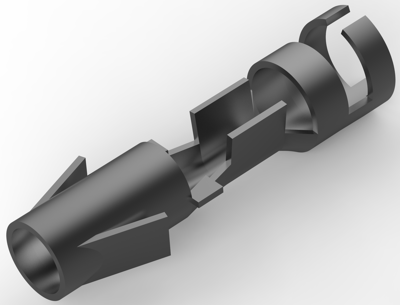

925661-1 | AMP
Receptacle, 0.5-2.0 mm², AWG 20-14, crimp connection, 925661-1
Unit Price (€ / pc.)
0.1702 € *
Available: 0 pcs.
Available in 5 Days: 2,831 pcs.
Leadtime: 19 Weeks **
Power contact, 925661-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 17 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 3.56 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 14 AWG, Wire Size: 0.5 - 2 mm², Accepts Wire Insulation Diameter Range: 2.5 - 4.5 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Ausführung | Buchsenkontakt | |
| AWG-Leiterquerschnitt | AWG 20-14 | |
| Isolationsdurchmesser | 2,5-4,5 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | verzinnt | |
| Leiterquerschnitt | 0,5-2,0 mm² |
Download
Logistics
| Ursprungsland | NL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
