926868-3 | AMP

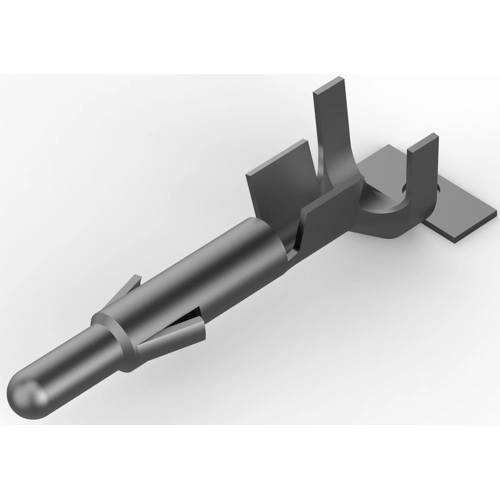

Pin contact, 1.5-2.5 mm², AWG 16-13, crimp connection, tin-plated, 926868-3
Unit Price (€ / pc.)
0.2892 € *
Available: 0 pcs.
Leadtime: 34 Weeks **
Total Price:
0.29 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2892 €
100 pcs.
0.2547 €
250 pcs.
0.2237 €
500 pcs.
0.1845 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male contact on original reels.
Contact material: phosphor bronze. Contact finish: tinned. Contact version: standard.
Technical attributes (type, for wire cross-section, insulation diameter, lenght L, number of male contact per reel): 0-0926868-3, 1.5 to 2.5mm²², 3.3 to 5.1 mm, L 20.6 mm, 2500 items
Technical specifications
| Ausführung | Stiftkontakt | |
| AWG-Leiterquerschnitt | AWG 16-13 | |
| Isolationsdurchmesser | 3,3-5,08 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Phosphorbronze | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | verzinnt | |
| Kontaktoberfläche | verzinnt | |
| Leiterquerschnitt | 1,5-2,5 mm² |
Download
Logistics
| Ursprungsland | NL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
